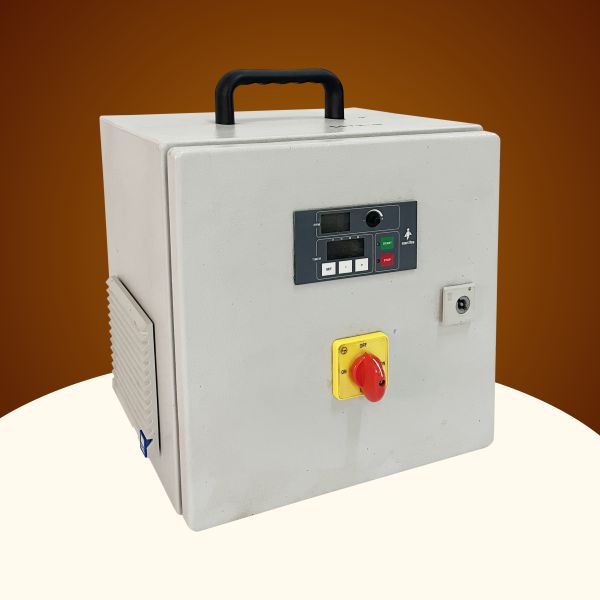

SPEED VARIATOR

Santha's special purpose speed variator to vary RPM and set the grinding Time.
  1. RPM can be varied between 0 to 140 for the drum rotation.
  2. Timer setting can be done from 1 minute to 99 hours and 99 minutes.
  3. Speed variator functions as a converter of single-phase to three-phase power.
  4. CE certified grinder will be offered with a CE certified speed variator.
  5. There are two different types and two different categories.

Standard-SSV 0.5-S and SSV 2-S,

Standard

Advanced(CE)-SSV 0.5-S and SSV 2-A,

Advanced(CE)
S.No Model SSC 0.5-S SSV 2-S SSV 0.S-A SSV 2-A
1 Categories Standard Standard Advanced (CE) Advanced (CE)
2 Certification Certified Internal items Certified Internal items Certified Internal items Certified Internal items
3 Variator Type Varies time and RPM Varies time and RPM Varies time,RPM and Controls Sensors Varies time,RPM and Controls Sensors
4 Input volt Ac 230V/50-60Hz Single Phase Ac 230V/50-60Hz Single Phase Ac 230V/50-60Hz Single Phase Ac 230V/50-60Hz Single Phase
5 Output Volt Ac 420V/50Hz Three Phase Ac 420V/50Hz Three Phase Ac 420V/50Hz Three Phase Ac 420V/50Hz Three Phase
6 Output Power 0.37kW/0.5hp 1.5 kW/2hp 0.37kW/0.5hp 1.5kW/2hp
7 Safety sensors Nill Nill Available Available
8 Weight kg/Lbs 8/18 9.7/21 14/31 15/33
9 Packing Crate Size 370x200x400 mm 370x280x400 mm 500x250x380 mm 500x250x380 mm
10 Gross Weight Kg/Lbs 20/44 22/49 26/57 27/60
11 CBM-Vol.Mt3 0.03 0.041 0.048 0.048

Comparison Chart

S.No Modal STYLO CORVI 16 CORVI 40 WAYO 16 WAYO 40 WAYO 100
1 Chocolate Grinding Capacity 0.750 Kgs/ 1.65 lbs 6 Kgs/ 13.2 lbs 16 Kgs/ 35.2 lbs 6 Kgs/ 13.2 lbs 16 Kgs/ 35.2 lbs 40 Kgs/ 88 lbs
2 Drum Volume 7 Litres 16 Litres 41 Litres 16 Litres 41 Litres 100 Litres
3 Grinding Stone Black Granite Black Granite Black Granite Black Granite Black Granite Black Granite
4 Supply Voltage AC 230 Volts AC 230 Volts AC 230 Volts AC 230 Volts AC 230 Volts AC 230 Volts
5 Frequency 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
6 Input Phase Single Phase Single Phase Single Phase Single Phase Single Phase Single Phase
7 Motor Power 90 Watt/ 0.12 HP 0.37 kw/ 0.5 HP 1.5 kw/ 2 HP 0.37 kw/ 0.5 HP 0.75 kw/ 1 HP 1.5 kw/ 2 HP
8 Motor RPM 900 1330 1380 1440 1440 1440
9 Drum RPM 130 130 135 140 140 140
10 Drum Dia / Depth 240/150 (±5mm) 300/227 (±5mm) 410/315 (±5mm) 300/227 (±5mm) 410/315 (±5mm) 509/510 (±5mm)
11 Removable Roller Stone Weight 3.2 Kgs/ 7 lbs 9.35 Kgs/ 21 lbs 22 Kgs/ 49 lbs 11 Kgs/ 24 lbs 23 Kgs/ 51 lbs 48 Kgs/ 106 lbs
12 Grinder Weight 16 Kgs/ 35 lbs 48 Kgs/ 106 lbs 115 Kgs/ 254 lbs 64 Kgs/ 141 lbs 130 Kgs/ 287 lbs 230 Kgs/ 507 lbs
13 Packed Grinder Weight 18 Kgs/ 40 lbs 95 Kgs/ 210 lbs 180 Kgs/ 397 lbs 118 Kgs/ 260 lbs 170 Kgs/ 375 lbs 290 Kgs/ 640 lbs
14 Packed Box Dimensions (L X B X H) 510x335x355mm 700x450x650mm 1130x620x810mm 840x600x800mm 1070x700x1050mm 1270x830x1350mm
15 CBM Volume m3 0.061 0.205 0.567 0.403 0.786 1.423
16 Drive Mechanism Belt Belt Chain Gearbox Gearbox Gearbox
17 Shell Construction ABS Fibre Reinforced Plastic Stainless Steel Stainless Steel Stainless Steel Stainless Steel
18 Tilting Mechanism N/A Manual Manual GearBox Assisted Manual GearBox Assisted Manual GearBox Assisted Manual
19 Castor Wheel N/A N/A N/A Yes Yes Yes
20 Speed Variator (Standard) N/A N/A Yes Yes Yes Yes
21 Speed Variator (Advanced) N/A N/A Yes Yes Yes Yes
22 Motor Certification CE certified CE certified CE certified CE certified CE certified CE certified
23 Certification CE, CB, SAA N/A N/A Pending Pending Pending
